0.5 Mm SS201 SS410 Stainless Steel Sheets Mirror Polished ASTM Perforated Mesh

  • 1
  • 2

Brand Name : TISCO

Model Number : 201 202 304 316 317 321 310 309 410 420

Certification : SGS ISO ROHS

Place of Origin : CHINA

MOQ : 1 Ton

Price : According To The Quantity

Payment Terms : T/T

Supply Ability : 800 Tons Per Month

Delivery Time : 7-10Days

Packaging Details : Standard Seaworthy Package

Delivery time : 7-10Days after confirming order

Thickness : 0.5-2mm

Tolerance : ±1%

Invoicing : By theoretical weight

Feature : Corrosion Resistance

Payment : T/T

Contact Now

0.5 Mm Ss201 Ss410 Mirror Polished Stainless Steel Sheets Astm Perforated Mesh For Architectural Feature Panels

Product Application

Our perforated metals have been used in

• Sunscreens

• Balustrade panels

• Fencing and gate infill panels

• Ceiling panels

• Architectural feature panels

• Building facades

• Acoustic wall panels

• Filters

• Shop fitting wall panels

Product Details

Product name

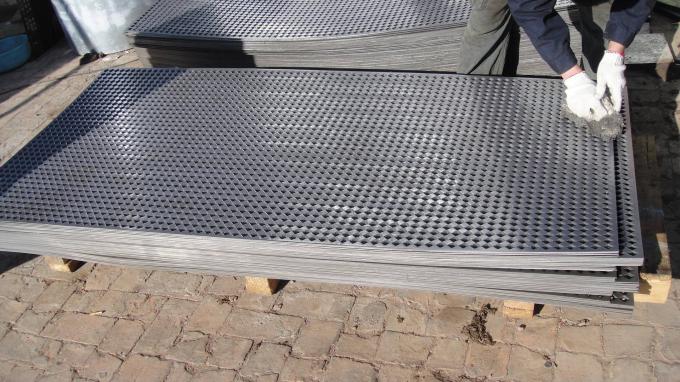

Perforated sheet (as well known as metal sheet, punch sheet)
Material
Stainless steel 304,316,201 or aluminum sheet
Size
1220*2440mm,1200*2400mm,1000*2000mm or customized
Thickness
0.5-2mm as per customer request
Hole shape
Round/Square/Diamond/Star..... or Customized
Features
Anti-corrosion, anti rust,multiple type, attractive appearance, east install
Package
1.On pallet with waterproof cloth
2.In wooden case with waterproof paper
3.In carton box
4.In roll with woven bag
5.In bulk or In bundle

Chemical Composition

Grade C Si Mn P Ni Cr Mo
201 ≤0.15 ≤0.75 5.5-7.5 ≤0.06 3.5-5.5 16.0-18.0 -
202 ≤0.15 ≤1.0 7.5-10.0 ≤0.06 4.-6.0 17.0-19.0 -
301 ≤0.15 ≤1.0 ≤2.0 ≤0.045 6.0-8.0 16.0-18.0 -
302 ≤0.15 ≤1.0 ≤2.0 ≤0.035 8.0-10.0 17.0-19.0 -
304 ≤0.08 ≤1.0 ≤2.0 ≤0.045 8.0-10.5 18.0-20.0 -
304L ≤0.03 ≤1.0 ≤2.0 ≤0.035 9.0-13.0 18.0-20.0 -
309S ≤0.08 ≤1.0 ≤2.0 ≤0.045 12.0-15.0 22.0-24.0 -
310S ≤0.08 ≤1.5 ≤2.0 ≤0.035 19.0-22.0 24.0-26.0 -
316 ≤0.08 ≤1.0 ≤2.0 ≤0.045 10.0-14.0 16.0-18.0 2.0-3.0
316L ≤0.03 ≤1.0 ≤2.0 ≤0.045 12.0-15.0 16.0-18.0 2.0-3.0
321 ≤0.08 ≤1.0 ≤2.0 ≤0.035 9.0-13.0 17.0-19.0 -
630 ≤0.07 ≤1.0 ≤1.0 ≤0.035 3.0-5.0 15.5-17.5 -
631 ≤0.09 ≤1.0 ≤1.0 ≤0.030 6.50-7.75 16.0-18.0 -
904L ≤2.0 ≤0.045 ≤1.0 ≤0.035 23.0-28.0 19.0-23.0 4.0-5.0
2205 ≤0.03 ≤1.0 ≤2.0 ≤0.030 4.5-6.5 22.0-23.0 3.0-3.5
2507 ≤0.03 ≤0.80 ≤1.2 ≤0.035 6.0-8.0 24.0-26.0 3.0-5.0
2520 ≤0.08 ≤1.5 ≤2.0 ≤0.045 0.19-0.22 0.24-0.26 -
410 ≤0.15 ≤1.0 ≤1.0 ≤0.035 - 11.5-13.5 -
430 ≤0.12 ≤0.75 ≤1.0 ≤0.040 ≤0.60 16.0-18.0 -

Grade Tensile Strength (Mpa) Yield Strength (Mpa) Elogation(%) Hardness (HRB)
201 ≥655 ≥310 ≥40 ≤100
202 ≥620 ≥260 ≥40 ≤100
304 ≥515 ≥205 ≥40 ≤92
304L ≥485 ≥170 ≥40 ≤88
316 ≥515 ≥205 ≥40 ≤95
316L ≥485 ≥170 ≥40 ≤95
321 ≥515 ≥205 ≥40 ≤95
409 ≥380 ≥205 ≥20 ≤80
409L ≥350 ≥185 ≥22 ≤80
430 ≥450 ≥205 ≥22 ≤80

VariousTypes

0.5 Mm SS201 SS410 Stainless Steel Sheets Mirror Polished ASTM Perforated Mesh

Surface Treatment

Surface Finish
Defination
2B
Those finished,after cold rolling,by heat treatment,picking or other equivalent treatment and lastly by cold rolling to given
appropriate luster
BA
Those processed with bright heat treatment after cold rolling
No.1
The surface finished by heat treatment and picking or processes corresponding there to after hot rolling
No.4
Those finished by polishing with No.150 to No.180 abrasives specified in JIS R 6001
HL
Those finished polishing so as to give continuous polishing streaks by using abrasive of suitable grain size
8K
A mirror-like reflective surface by polishing with finer abrasives over 800 mesh

Packaging & Shipping

​​0.5 Mm SS201 SS410 Stainless Steel Sheets Mirror Polished ASTM Perforated Mesh


0.5 Mm SS201 SS410 Stainless Steel Sheets Mirror Polished ASTM Perforated Mesh

Certification

0.5 Mm SS201 SS410 Stainless Steel Sheets Mirror Polished ASTM Perforated Mesh

Packing & Shipping

0.5 Mm SS201 SS410 Stainless Steel Sheets Mirror Polished ASTM Perforated Mesh

Packing
PVC waterproof paper packed , strong sea-worthy wooden package and steel plate packing
Shipping port
Shanghai
Shipment
Length: ≤6m, loaded in 20GP Container
Length: ≤12m, loaded in 40GP Container
Size of 20GP Container (inside :5898*2352*2393mm)
Size of 40GP Container (inside:12032*2352*2393mm)
Size of 40HQ Container (inside:12032*2352*2698mm)
Delivery time
Within 7-15 days, depending on the situation

FAQ

Q1: ARE YOU FACTORY OR TRADER?
A1: Our company is a cold rolling manufacturer of magnetic stainless steel coil since 2009. We've gained our Export Right and become an integrated company of industry and trade in order to satisfy buyer's multi-request on different material and products.

Q2: WHICH MATERIAL/PRODUCTS YOU CAN PROVIDE?
A2: Stainless Steel Coils / Strips, Stainless Steel Sheets / Plates, Stainless Steel Circles / Discs, Decorative Stainless Steel Sheets.

Q3: HOW TO GET A SAMPLE?
A3: FREE samples are available for your checking and testing. And to get free samples, you need to send us you detailed receiving address (including post code) and your DHL/FedEx/UPS account for collecting samples, courier cost will be paid in your side.

Q4: HOW TO VISIT YOUR FACTORY?
A4: Most of the main cities have flights to Wuxi; you can take flight to Wuxi Shuofang International Airport.
If you come from Shanghai, it will take 2 hours by flight (every day 5 flights).
If you come from Hongkong, it will take 1 hour by flight (every day 1 flight around noon time).
