Mill Edge 304 Stainless Steel Plate 10mm Weak Magnetic For Industrial Tanks

Product Categories
Jiangsu Pucheng Metal Products Co.,Ltd.
Contact Now

Mill Edge 304 Stainless Steel Plate 10mm Weak Magnetic For Industrial Tanks

Brand Name : TISCO

Model Number : 201 304 316 410 420 430 904

Certification : ISO,CE,RoHS

Place of Origin : CHINA

MOQ : 1 Ton

Price : According To The Quantity

Payment Terms : 30%L/C + 70%T/T

Supply Ability : 50000 Tons Per Year

Delivery Time : 7-10days

Packaging Details : Standard Seaworthy Package

Length : 2438/3000/6000 mm

Surface : NO.1

Magnetic : Weak

Width : 1250/1500/1800/2000 mm

Thickness : 3.0-50mm

Edge : Mill Edge & Slit Edge

Contact Now

Hot Rolled Stainless Steel 304 Plate For Chemical Industry Equipment Industrial Tanks

Hot-rolled stainless steel, mechanical properties not as good as cold-rolled, but there are good toughness and ductility. Cold-rolled stainless steel plate due to the good hardening, toughness is low.
In order to ensure all kinds of stainless steel yield strength, tensile strength, elongation and hardness and other mechanical properties to meet the requirements, prior to delivery must be stainless steel annealing, solution treatment, aging heat treatment.

Material
 Hot Rolled Stainless Steel 304 Plate For Chemical Industry Equipment Industrial Tanks
Material Origin TISCO, BAOSTEEL, JISCO, LISCO, DINGXIN
Grade Mainly201, 202, 304, 304L, 304H, 316, 316L,316Ti,2205, 330, 630, 660, 409L, 321, 310S, 410, 416, 410S, 430, 347H, 2Cr13, 3Cr13 etc
300series:301,302,303,304,304L,309,309s,310,310S,316,316L,316Ti,317L,321,347
200series:201,202,202cu,204
400series:409,409L,410,420,430,431,439,440,441,444
Others:2205,2507,2906,330,660,630,631,17-4ph,17-7ph, S318039 904L,etc
Duplex stainless steel:S22053,S25073,S22253,S31803,S32205,S32304
Special Stainless Steel:904L,347/347H,317/317L,316Ti,254Mo
Technology Hot Rolled
Length 100~12000 mm
Width 100~2000 mm
Thickness Cold Roll:0.1~3 mm
Hot Roll:3~100 mm
Surface BA, 2B, 2D, 4K, 6K, 8K, NO.4, HL, SB, Embossed
Leveling: improve flatness, esp. for items with high flatness request.
Skin-Pass: improve flatness, higher brightness
Other Choices Cutting:Laser cutting, help the customer to cut the required size
Protection 1. Inter paper available
2. PVC protecting film available
Price Item FOB,CIF,DDU,FCA,EXW ,.etc

Chemical Composition

Grade C Si Mn P Ni Cr Mo
201 ≤0.15 ≤0.75 5.5-7.5 ≤0.06 3.5-5.5 16.0-18.0 -
202 ≤0.15 ≤1.0 7.5-10.0 ≤0.06 4.-6.0 17.0-19.0 -
301 ≤0.15 ≤1.0 ≤2.0 ≤0.045 6.0-8.0 16.0-18.0 -
302 ≤0.15 ≤1.0 ≤2.0 ≤0.035 8.0-10.0 17.0-19.0 -
304 ≤0.08 ≤1.0 ≤2.0 ≤0.045 8.0-10.5 18.0-20.0 -
304L ≤0.03 ≤1.0 ≤2.0 ≤0.035 9.0-13.0 18.0-20.0 -
309S ≤0.08 ≤1.0 ≤2.0 ≤0.045 12.0-15.0 22.0-24.0 -
310S ≤0.08 ≤1.5 ≤2.0 ≤0.035 19.0-22.0 24.0-26.0 -
316 ≤0.08 ≤1.0 ≤2.0 ≤0.045 10.0-14.0 16.0-18.0 2.0-3.0
316L ≤0.03 ≤1.0 ≤2.0 ≤0.045 12.0-15.0 16.0-18.0 2.0-3.0
321 ≤0.08 ≤1.0 ≤2.0 ≤0.035 9.0-13.0 17.0-19.0 -
630 ≤0.07 ≤1.0 ≤1.0 ≤0.035 3.0-5.0 15.5-17.5 -
631 ≤0.09 ≤1.0 ≤1.0 ≤0.030 6.50-7.75 16.0-18.0 -
904L ≤2.0 ≤0.045 ≤1.0 ≤0.035 23.0-28.0 19.0-23.0 4.0-5.0
2205 ≤0.03 ≤1.0 ≤2.0 ≤0.030 4.5-6.5 22.0-23.0 3.0-3.5
2507 ≤0.03 ≤0.80 ≤1.2 ≤0.035 6.0-8.0 24.0-26.0 3.0-5.0
2520 ≤0.08 ≤1.5 ≤2.0 ≤0.045 0.19-0.22 0.24-0.26 -
410 ≤0.15 ≤1.0 ≤1.0 ≤0.035 - 11.5-13.5 -
430 ≤0.12 ≤0.75 ≤1.0 ≤0.040 ≤0.60 16.0-18.0 -

Grade Tensile Strength (Mpa) Yield Strength (Mpa) Elogation(%) Hardness (HRB)
201 ≥655 ≥310 ≥40 ≤100
202 ≥620 ≥260 ≥40 ≤100
304 ≥515 ≥205 ≥40 ≤92
304L ≥485 ≥170 ≥40 ≤88
316 ≥515 ≥205 ≥40 ≤95
316L ≥485 ≥170 ≥40 ≤95
321 ≥515 ≥205 ≥40 ≤95
409 ≥380 ≥205 ≥20 ≤80
409L ≥350 ≥185 ≥22 ≤80
430 ≥450 ≥205 ≥22 ≤80

Detail Photos

Mill Edge 304 Stainless Steel Plate 10mm Weak Magnetic For Industrial Tanks

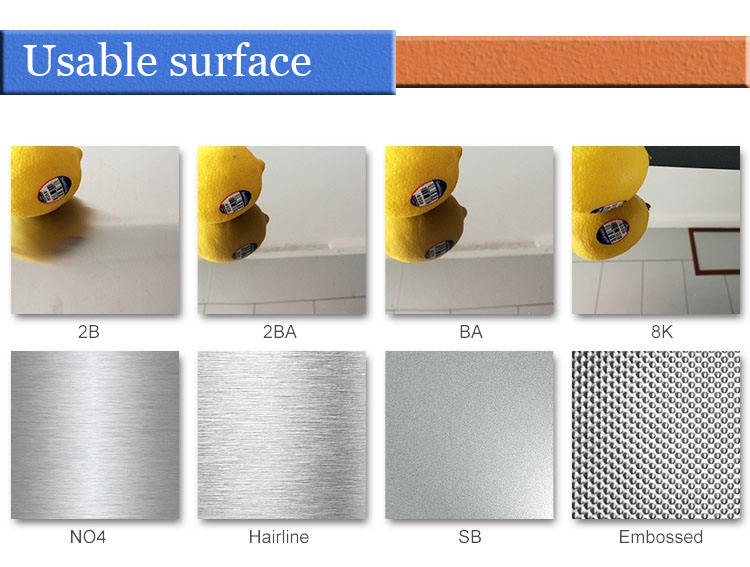

Surface Refrence

​Mill Edge 304 Stainless Steel Plate 10mm Weak Magnetic For Industrial Tanks​

Surface
Characteristic
Processing Technology
N0.1
Original
Pickled after hot rolling
2D
Blunt
Hot rolling + annealing shot peening pickling + cold rolling + annealing pickling
2B
Blurred
Hot rolling + annealing shot peening pickling + cold rolling + annealing pickling + tempering rolling
N0.3
Matte
Polishing and tempering rolling with 100-120 mesh abrasive materials
N0.4
Matte
Polishing and tempering rolling with 150-180 mesh abrasive material
NO.240
Matte
Polishing and tempering rolling with 240 mesh abrasive materials
NO.320
Matte
Polishing and tempering rolling with 320 mesh abrasive materials
NO.400
Matte
Polishing and tempering rolling with 400 mesh abrasive materials
HL
Brushed
Grind the surface of the steel belt with an appropriate grinding grain size to make it show a certain longitudinal texture
BA
Bright
The surface is annealed and shows high reflectivity
6K
Mirror
Rough grinding and polishing
8K
Mirror
Fine grinding and polishing

Certification

Mill Edge 304 Stainless Steel Plate 10mm Weak Magnetic For Industrial Tanks

Packing & Shipping

Mill Edge 304 Stainless Steel Plate 10mm Weak Magnetic For Industrial Tanks

Packing
PVC waterproof paper packed , strong sea-worthy wooden package and steel plate packing
Shipping port
Shanghai
Shipment
Length: ≤6m, loaded in 20GP Container
Length: ≤12m, loaded in 40GP Container
Size of 20GP Container (inside :5898*2352*2393mm)
Size of 40GP Container (inside:12032*2352*2393mm)
Size of 40HQ Container (inside:12032*2352*2698mm)
Delivery time
Within 7-15 days, depending on the situation

FAQ

Q1: ARE YOU FACTORY OR TRADER?
A1: Our company is a cold rolling manufacturer of magnetic stainless steel coil since 2009. We've gained our Export Right and become an integrated company of industry and trade in order to satisfy buyer's multi-request on different material and products.

Q2: WHICH MATERIAL/PRODUCTS YOU CAN PROVIDE?
A2: Stainless Steel Coils / Strips, Stainless Steel Sheets / Plates, Stainless Steel Circles / Discs, Decorative Stainless Steel Sheets.

Q3: HOW TO GET A SAMPLE?
A3: FREE samples are available for your checking and testing. And to get free samples, you need to send us you detailed receiving address (including post code) and your DHL/FedEx/UPS account for collecting samples, courier cost will be paid in your side.

Q4: HOW TO VISIT YOUR FACTORY?
A4: Most of the main cities have flights to Wuxi; you can take flight to Wuxi Shuofang International Airport.
If you come from Shanghai, it will take 2 hours by flight (every day 5 flights).
If you come from Hongkong, it will take 1 hour by flight (every day 1 flight around noon time).
